Pimpex@RPM supplies professional bicolors injection machine SZ3000DS for making fliptop caps with in-mould-changing-colors technology & in-mould-closing-caps technology which nearly double the outputs than general rotation type bicolors injection machines'. |
 Bicolors Injection Machine SZ3000DS For Fliptop Caps |
Video of Bicolors Fliptop Cap Injection Mould In-Mould-Changing-Colors_In-Mould-Closing-Caps |
| INJECTION UNIT | Items | Unit | SZ-3000DS | |
| A Screw | B Screw | |||
| Screw Diameter | mm | 65 | 25 | |
| Shot Size(Theoretical) | cm3 | 995 | 58.9 | |
| Injection Weight | g | 905 | 53 | |
| Injection Pressure | MPa | 176 | 134 | |
| Screw Speed | rpm | 150 | 200 | |
CLAMPING UNIT |
Clamping Force | KN | 3000 | |
| Clamping Stroke | mm | 590 | ||
| Space Between Tie Bars | mm | 610×610 | ||
| Max. Mold Height | mm | 750 | ||
| Min. Mold Height | mm | 250 | ||
| Ejector Stroke/Force | mm /KN | 76/140 | ||
| Number of Ejector Pins | piece | 9 | ||
| OTHERS | Max. Pump Pressure | Mpa | 16 | |
| Pump Motor Power | KW | 30+7.5 | ||
| Heater Power | KW | 22+5 | ||
| Hopper capacity | Kg | 50 | 15 | |
| Oil Tank Capacity | L | 560 | ||
| Machine Dimension(L*W*H) | m | 7×1.75×3.2 | ||
| Machine Weight | Ton | 11.5 | ||

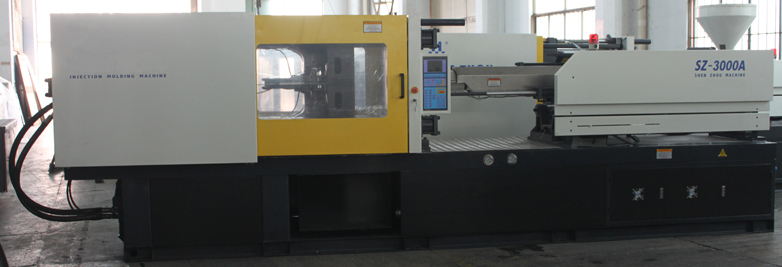

Bicolors Injection Machine SZ3000DS For Making Fliptop Caps |

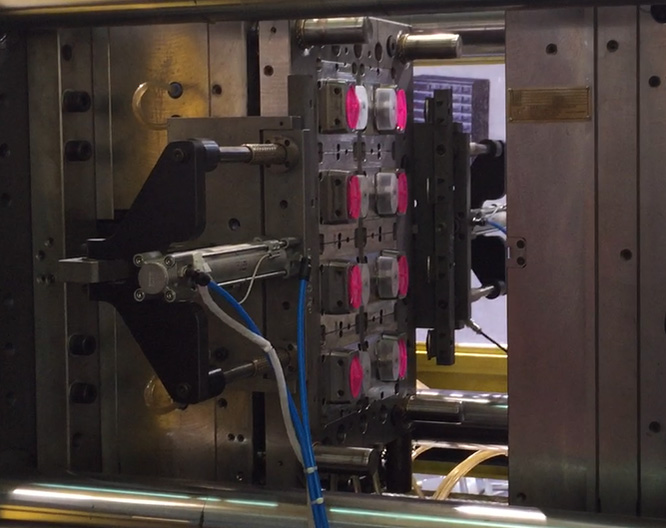

 Bicolors Fliptop Caps Injection Mould In-Mould-Changing-Colors In-Mould-Closing-Caps |

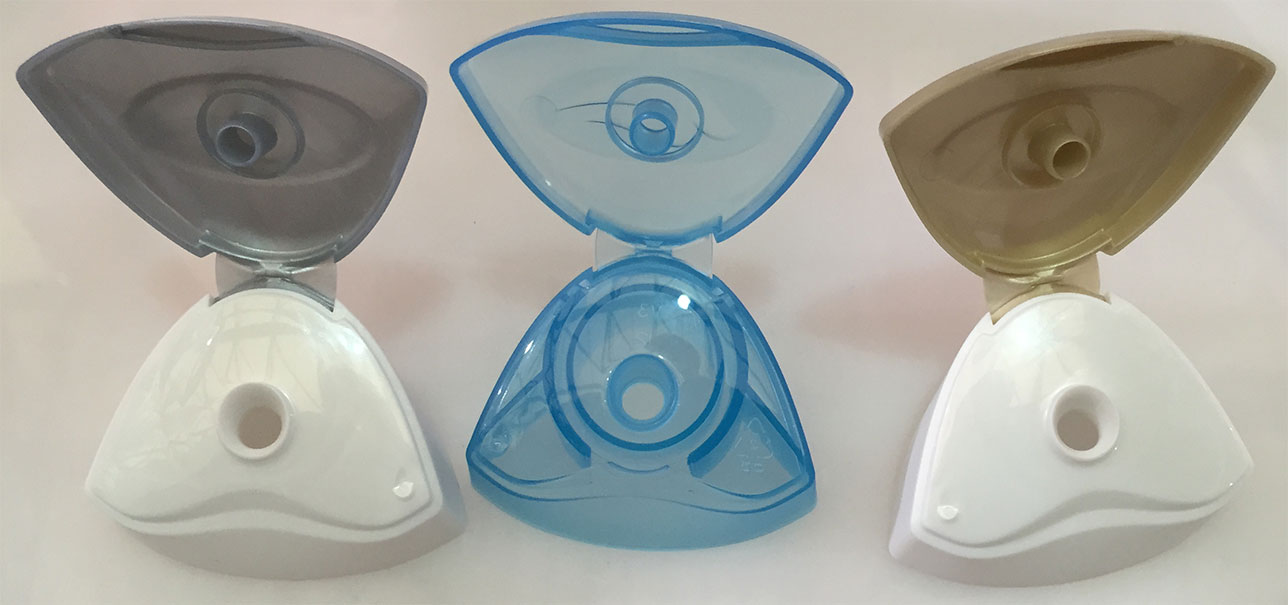

 Bicolors Fliptop Caps - - |
 Clamping System Left |

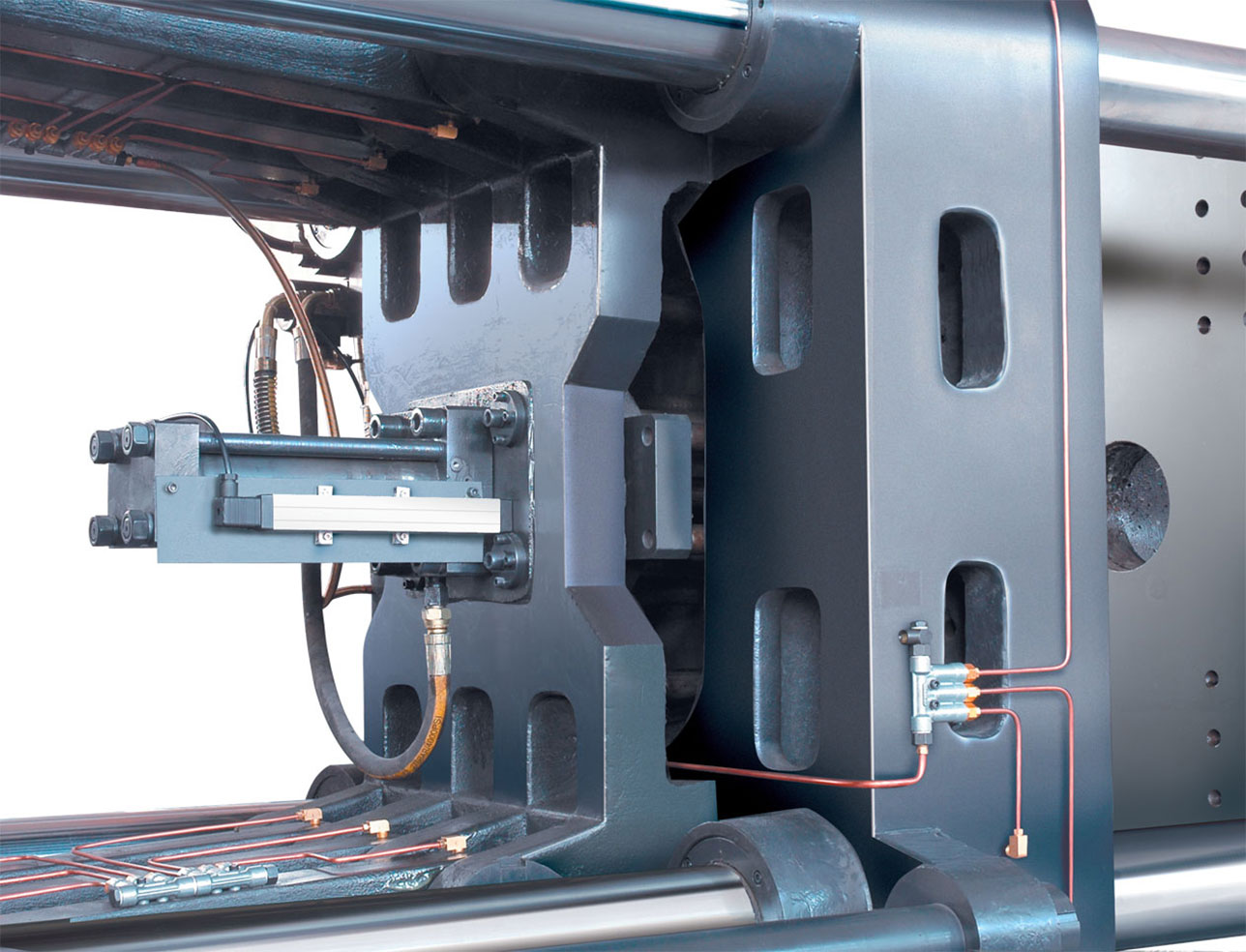

 Clamping System Right |

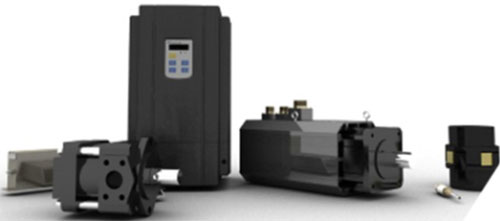

 Main Components |

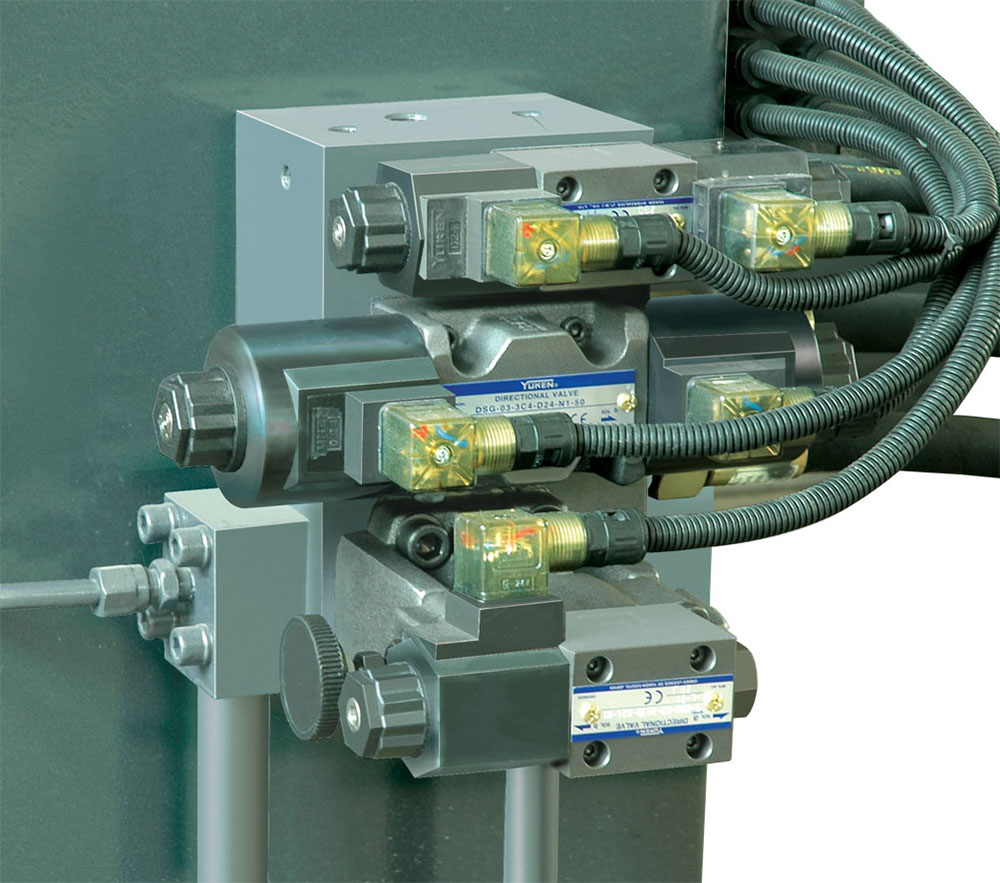

 Yuken Directional Valve |

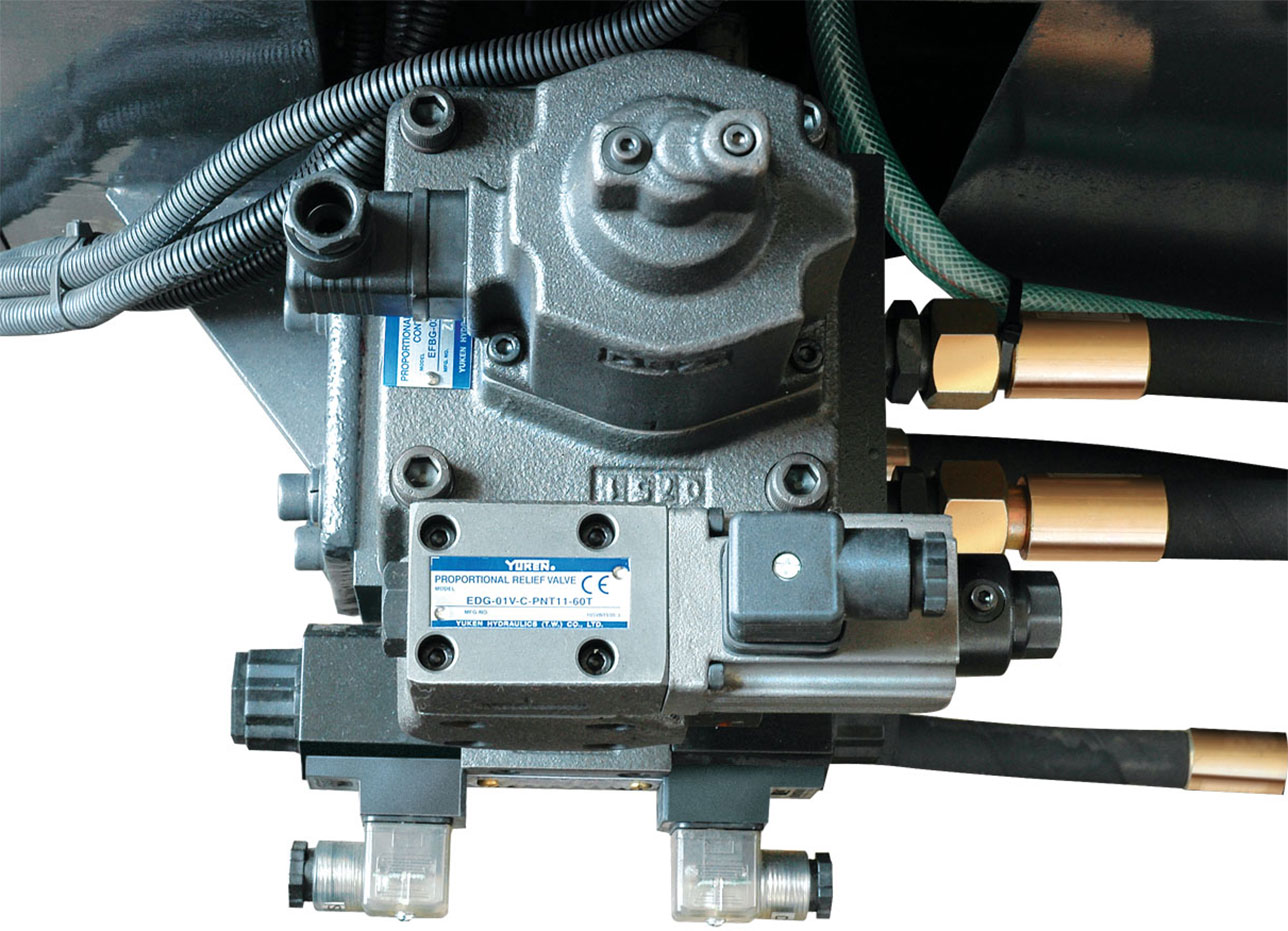

 Yuken Proportional Relief Valve |

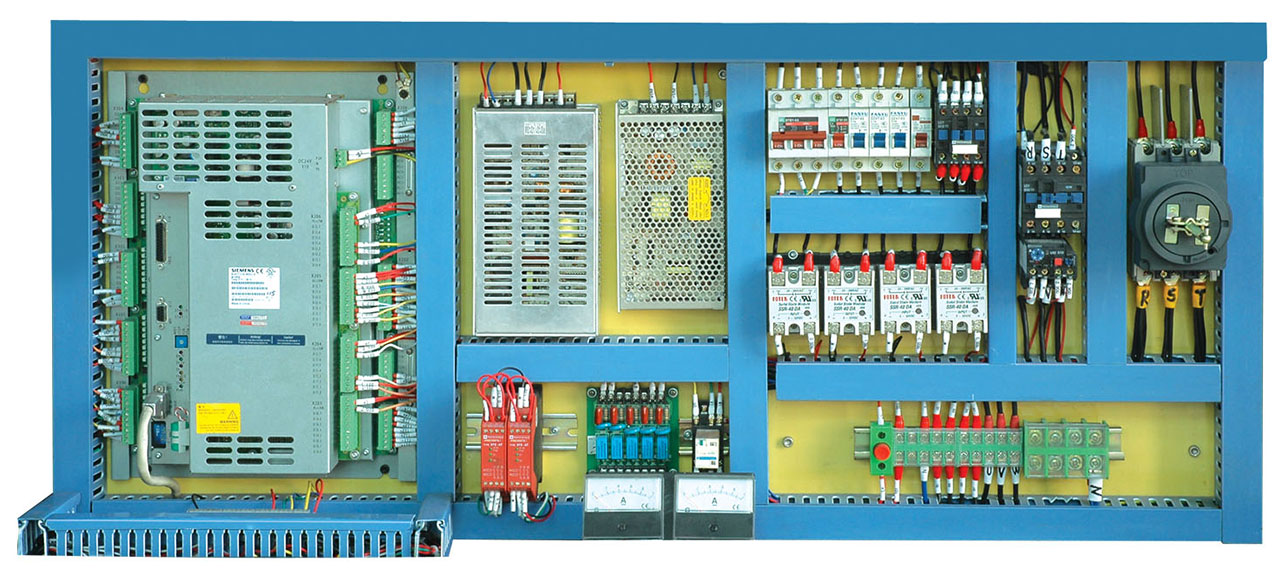

 Electric Control Cabinet |
| Name | Brand | Origin |
| Reversal Hydraulic Valve | YUKEN | JAPAN |
| Proportional Hydraulic Valve | YUKEN | JAPAN |
| Hydraulic Oil Pump | ECKERLE | GERMANY |
| Hydraulic Motor | ZY | Italy-China |
| Hydraulic Hose | KIMBERLEY | GERMANY |
| Sealing Rings | VALQUA | JAPAN |
| Computer Control System | TEHCMATION | TAIWAN |
| Display Screen | HITACHI | TAIWAN |
| Linear Transducer | GEFRAN | ITALY |
| Limit Switch | National | JAPAN |
| Proximity Switch | FORTEK | TAIWAN |
| Solid State Relay | FORTEK | TAIWAN |
| Contactor | SCHNEIDER | FRANCE |
| High-temperature Wire | - | JAPAN |
| Air-break Switch | SCHNEIDER | FRANCE |
| Automatic Lubrication | SANLANG | CHINA |
| Servo Motor | PHASE | ITALY |
| Servo Driver | HUNTER | TAIWAN |
