Pimpex@RPM - Xiamen RPM Imp.&Exp. Co.Ltd.



Pimpex@RPM supplies two stations automatic plastics injection blow molding (IBM) machines.

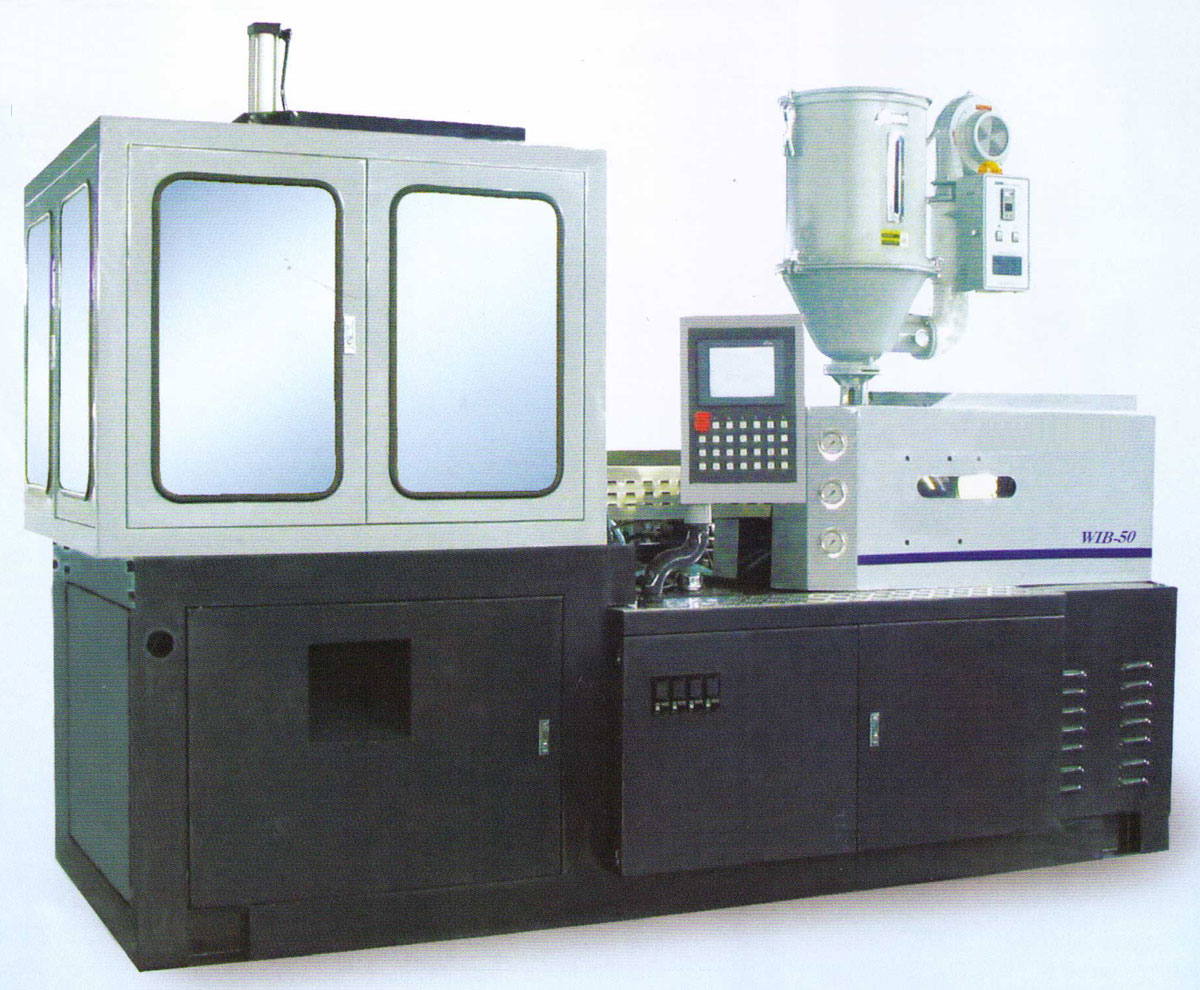

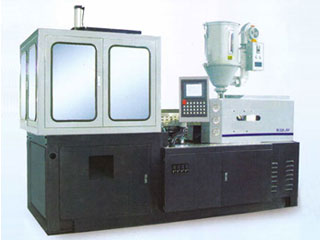

Two Stations Injection Blow Moding IBM Machine, Model WIB-50
Two Stations Injection Blow Moding IBM Machine, Model WIB-50

Video of Two Stations Injection Blow Moding IBM Machine, Model WIB-50

    May you have viewed our unique One Station Injection Blow Molding Machinery, which is under China patent protection, in homepage of m.gzqlh.com

    There are Three Stations Injection Blow Molding Machinery made by others manufacturers in the market, which has higher output capacities, while costs higher in prices and consume more energy in production and need more spaces in workshops.

    Now our IBM engineers develop unique Two Stations Injection Blow Moding IBM Machine, Model WIB-50, which inherits advantages like "Higher efficiency, Lower energy consumption, Lower mould cost, Simple mould structure, Easy operation, Compact roomage" from our unique One Station Injection Blow Molding Machinery, while surely increases output capacities of bottles. To find most suitable machinery to meet with requirements of your project, here might you could purchase correctly what you are sourcing for.

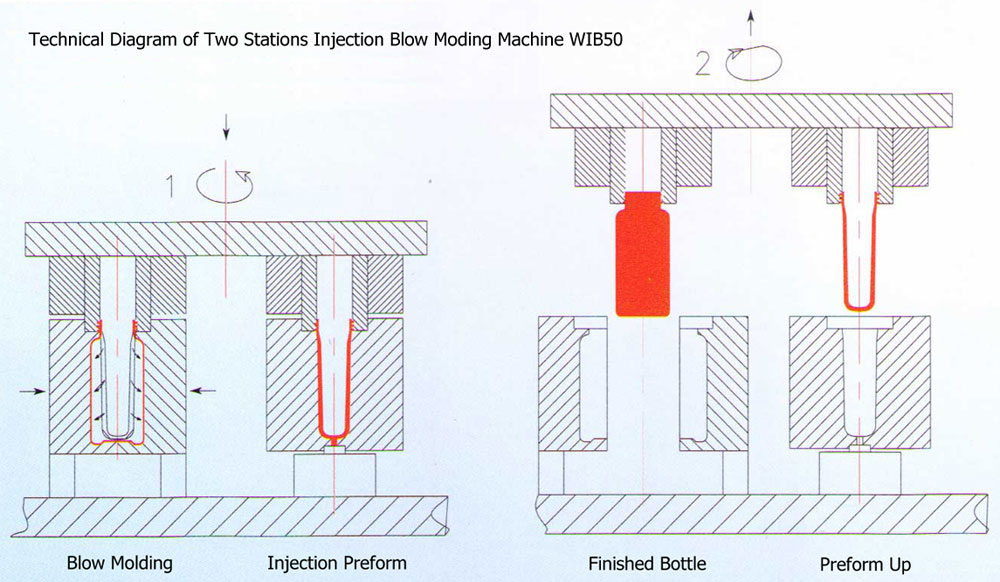

Technical Diagram of Two Stations Injection Blow Moding Machine WIB-50
Technical Diagram of Two Stations Injection Blow Moding Machine WIB-50
Bottle Sizes Definition
Bottle Sizes Definition
No.
Item
Unite
Data
Mold Cavities
(2 Stations)
Mouth Diameter
(d)
Body Diameter
(D)
Bottle Height
(H)
2*4
50mm
110mm
200mm
2*6
42mm
80mm
200mm
2*9
36mm
55mm
180mm
2*10
30mm
50mm
150mm
01
Screw Diameter
mm
50
02
Screw Speed
r/min
0~180
03
Injection Capacity
g
300
04
Injection Clamping Force
KN
210~280
05
Blow Clamping Force
KN
65
06
Production Speed
pcs/h
1100~2000
07
Suitable Materials
PE, PP, PS, SAN
08
Motor Power
KW
15
09
Heater Capacity
KW
11
10
Compressed Air
MPa
0.6~1.2
11
Cooling Water
bar
1~3
12
Machine Sizes
cm
330*140*220
13
Machine Weight
Kg
4500
