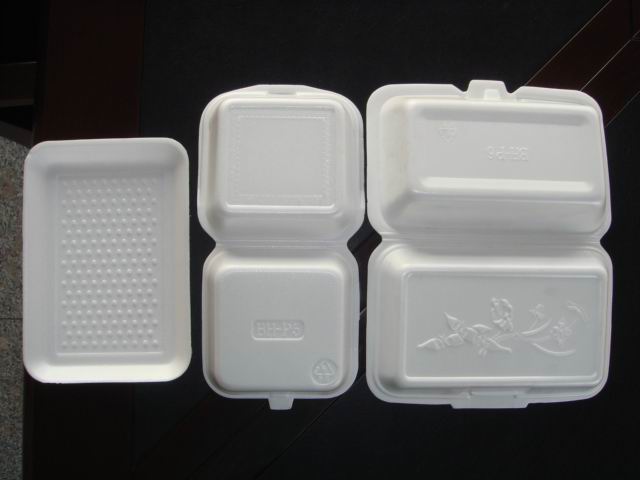

Lunch Snack Boxes & Fast Food Boxes Production Line

1. SMPSP-90/120 PSP Foam Sheet Extruder Group   1 Set

• Equipments Composition:
  • Automatic Feeding Machine   1 Set
  • Feeder Working Table, Steel Structure   1 Set
  • Fi90 Extruder   1 Set
    Screw diameter is 90mm, cast aluminum heater, cooling equipment in the main reducer box and gear surface is hard.
  • Fi120 Extruder   1 Set
    Screw diameter 120mm, cast aluminum explosion-prevention heater, cooling equipment in the main reducer box, hard gear surface
  • Fi90-120 Main Control Box   1 Set
    PID temperature controlling, solid relay executing
  • Butane Pump   1 Set
  • Hydraulic Pressure Screen Exchanger, equipped with a connector   1 Set
    Hydraulic pressure screen exchanger equipped with a hydraulic pressure station
  • Machine Head   1 Set
  • Drum Shape Cutting Device   1 Set Double-Cooling
  • Traction Machine for Single Sheet   1 Set
  • Winding Machine   1 Set
    Winding with 2 axes, drived by torque motor, equipped with length metering device and length alarm.
• Main Technical Parameters:
  • Production: 80～120kg/h
  • Thickness: 1mm～3.5mm (Adjustable)
  • Width: 640-1040mm
  • Expansion Rate: 12～20times
  • Drawing Speed: 3～30m/min
  • Mounting Power: 150KW
  • Center Height: 1000mm
  • Mounting Size: 30m(L)*4m(W)*3m(H)
  • Compressed Air: 0.4～0.7 M3/min,0.9MPa
  • Circulating Cooling Water: 2tons/hour
  • Weight: 12,000Kgs

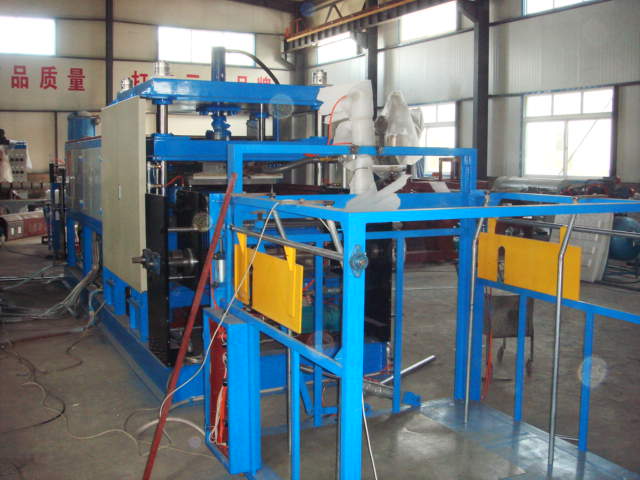

2. SMCX-1100/1250 Auto Vacuum Forming Machine Group   1 Set

• Equipments Composition:
  • Unfolding Device   1 Set, Winding driven by cylinder
  • Automatic Vacuum Forming Machine Group   1 Set
    Equipped with human-computer interface touch screen.
  • Cutting, Transporting, Collecting Device   1 Set
  • Temperature-controlling Box Solid Relay Output   1 Set
  • Main Control Box   1 Set
• Main Technical Parameters:
  • Maximum Forming Area: 1100mm*1250mm
  • Forming Method: Vacuum forming, press forming, mold forming, comprehensive forming.
  • Forming Depth: 0-130mm
  • Forming Efficiency: 3-6s/die
  • Forming Pressure: 12.5T
  • Mounting Power: 150KW
  • Weight: 12T
  • Mounting Size: 15m*2.1m*2.5m

3. SMCD-1100/1250*2 Plastics Cutter   1 Set

• Equipments Composition:
  • PLC, Human-Computer Interface Touch Screen
  • Hydraulic Valves Made in Taiwan.
• Main Technical Parameters:
  • Effective Cutting Area: 1100mm*1250mm
  • Maximum Cutting Depth: 150mm
  • Cutting Efficiency: 3-6s/mould
  • Cutting Force: 120Ton
  • Mounting Power: 11KW
  • Mounting Size: 3.8(L)m*1.6m(W)*2.5m(H)

4. SMFST-130/100 Plastic Recycle Pelletizer Group   1 Set

• Equipments Composition:
  • SMFST-130/100 Plastic Recycle Machine Group   1 Set
  • Wide Inlet Muller   1 Set
  • Feeding Blasting Machine   1 Set
  • Material Storing Box 1 Set
  • Forced Feeding Device 1 Set
  • Fi130/100 Flexible Diameter Exhausting Extruder   1 Set
  • Hydraulic Net Exchanger with Hydraulic Station   1 Set
  • Cooling Water Tank with Stainless Steel   1 Set
  • Granulating Gachine   1 Set
  • Muller Controlling Box   1 Set
  • Main Controlling Box   1 Set
• Technical Parameters:
  • Production: 80～130kg/h
  • Length Diameter Ratio: 28﹕1
  • Mounting Power: 90KW
  • Power Standard: 380V 3 Phases 4 Lines
  • Cooling Water Pressure: ≥0.2Mpa
  • Circulating Cooling Water
  • Screw Diameter: Fi130/100mm
  • Mounting Size: 9m*3.4m*5.5m
  • Weight: 6Ton

5. Forming & Cutting Die   1 Set

• Equipments Composition:
  • 1 Set of Forming Dies including upper die and bottom die
  • 1 Set of Cutting Dies for cutting machine

Lunch Snack Boxes & Fast Food Boxes Production Line

1. SMPSP-90/120 PSP Foam Sheet Extruder Group   1 Set

• Equipments Composition:
  • Automatic Feeding Machine   1 Set
  • Feeder Working Table, Steel Structure   1 Set
  • Fi90 Extruder   1 Set
    Screw diameter is 90mm, cast aluminum heater, cooling equipment in the main reducer box and gear surface is hard.
  • Fi120 Extruder   1 Set
    Screw diameter 120mm, cast aluminum explosion-prevention heater, cooling equipment in the main reducer box, hard gear surface
  • Fi90-120 Main Control Box   1 Set
    PID temperature controlling, solid relay executing
  • Butane Pump   1 Set
  • Hydraulic Pressure Screen Exchanger, equipped with a connector   1 Set
    Hydraulic pressure screen exchanger equipped with a hydraulic pressure station
  • Machine Head   1 Set
  • Drum Shape Cutting Device   1 Set Double-Cooling
  • Traction Machine for Single Sheet   1 Set
  • Winding Machine   1 Set
    Winding with 2 axes, drived by torque motor, equipped with length metering device and length alarm.
• Main Technical Parameters:
  • Production: 80～120kg/h
  • Thickness: 1mm～3.5mm (Adjustable)
  • Width: 640-1040mm
  • Expansion Rate: 12～20times
  • Drawing Speed: 3～30m/min
  • Mounting Power: 150KW
  • Center Height: 1000mm
  • Mounting Size: 30m(L)*4m(W)*3m(H)
  • Compressed Air: 0.4～0.7 M3/min,0.9MPa
  • Circulating Cooling Water: 2tons/hour
  • Weight: 12,000Kgs

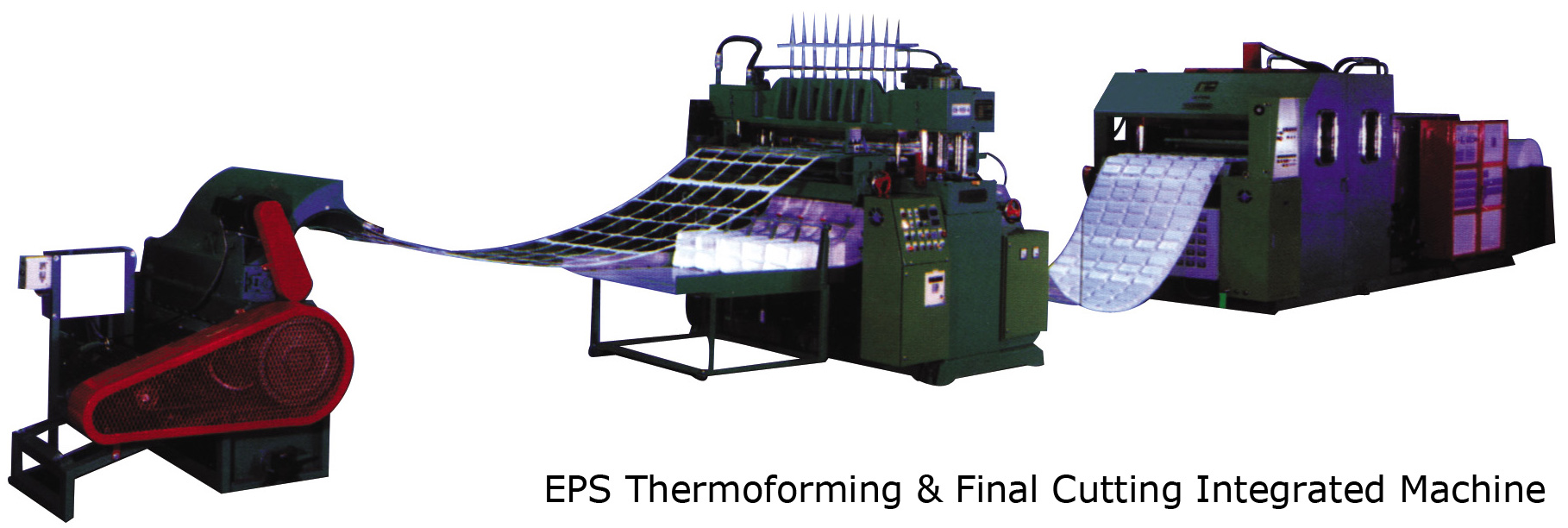

2. SMRC-1100/1250 Full Automatic Forming & Cutting Machine   1 Set

• Equipments Composition:
  • Material Feeding Frame   1 Set, Winding driven by pneumatic cylinder
  • Vacuum Forming & Cutting Machine   1 Set
  • Cutting & Conveying & Materials Collecting Device   1 Set
  • Temperature Control Box  1 Set, Solid Relay Output
  • Main Program Control Box   1 Set
• Main Technical Parameters:
  • Maximum Effective Forming & Cutting Area: 1100*1250mm
  • Forming & Cutting Mode: Vacuum forming, press forming, mold forming, comprehensive forming, conveying, cutting
  • Forming & Cutting Depth: 0-150mm
  • Maximum Forming & Cutting Speed: 4-6sec/time
  • Forming Pressure: 15T
  • Cutting Pressure: 120T
  • Installed Capacity: 150KW
  • Weight: 18T
  • Machine Sizes: 16*2.1*6m
  • Installation Dimension: 20*4.5*2.5m

3. SMFST-130/100 Plastic Recycle Pelletizer Group   1 Set

• Equipments Composition:
  • SMFST-130/100 Plastic Recycle Machine Group   1 Set
  • Wide Inlet Muller   1 Set
  • Feeding Blasting Machine   1 Set
  • Material Storing Box 1 Set
  • Forced Feeding Device 1 Set
  • Fi130/100 Flexible Diameter Exhausting Extruder   1 Set
  • Hydraulic Net Exchanger with Hydraulic Station   1 Set
  • Cooling Water Tank with Stainless Steel   1 Set
  • Granulating Gachine   1 Set
  • Muller Controlling Box   1 Set
  • Main Controlling Box   1 Set
• Technical Parameters:
  • Production: 80～130kg/h
  • Length Diameter Ratio: 28﹕1
  • Mounting Power: 90KW
  • Power Standard: 380V 3 Phases 4 Lines
  • Cooling Water Pressure: ≥0.2Mpa
  • Circulating Cooling Water
  • Screw Diameter: Fi130/100mm
  • Mounting Size: 9m*3.4m*5.5m
  • Weight: 6Ton

4. Full Automatic Compressed Air Forming Dies with Automatic Cutting Device    1 Set

• Equipments Composition:
  • Forming Dies   1 Pair
  • Cutter Blade Punching Die   2 Pairs

Remarks: These prices are calculated on USD100=RMB766 EX-WORK factory basis, if the exchange rate fluctuates more than 1%, the prices should be adjusted in last payment according to http: //www.bank-of-china.com/en/common/service.jsp
Payment: by 50% T/T prepayment plus 50% T/T payment before delivery
Lead Time: utmost 15 days for drawings confirmation, 90 days for first samples plus 10 days for quality improvements if necessary
Installation: The manufacturer installs and debugs the whole production line in China till good running, Buyer might come to China for training and quality checking and accepting procedures.
Quality Guaranteed Period: One year if Buyer correctly operates equipments and keep necessary maintenances. Of course, those wearing parts and non-special purpose items are not listed in guaranteed list. The manufacturer offers long term technical supports and spare parts at costs level.
Offer Date on May 19th, 2007

Please contact with Mr.HuaLong Lin to know if this offer is still valid.
