WeChat: +86.13328318872

Pimpex@RPM - Xiamen RPM Imp.&Exp. Co.Ltd.

6 Layers Extrusion Blow Molding EBM Machine PBSS-605D-SL & 4 Layers Extrusion Blow Molding EBM Machine PBSS-605D-FL

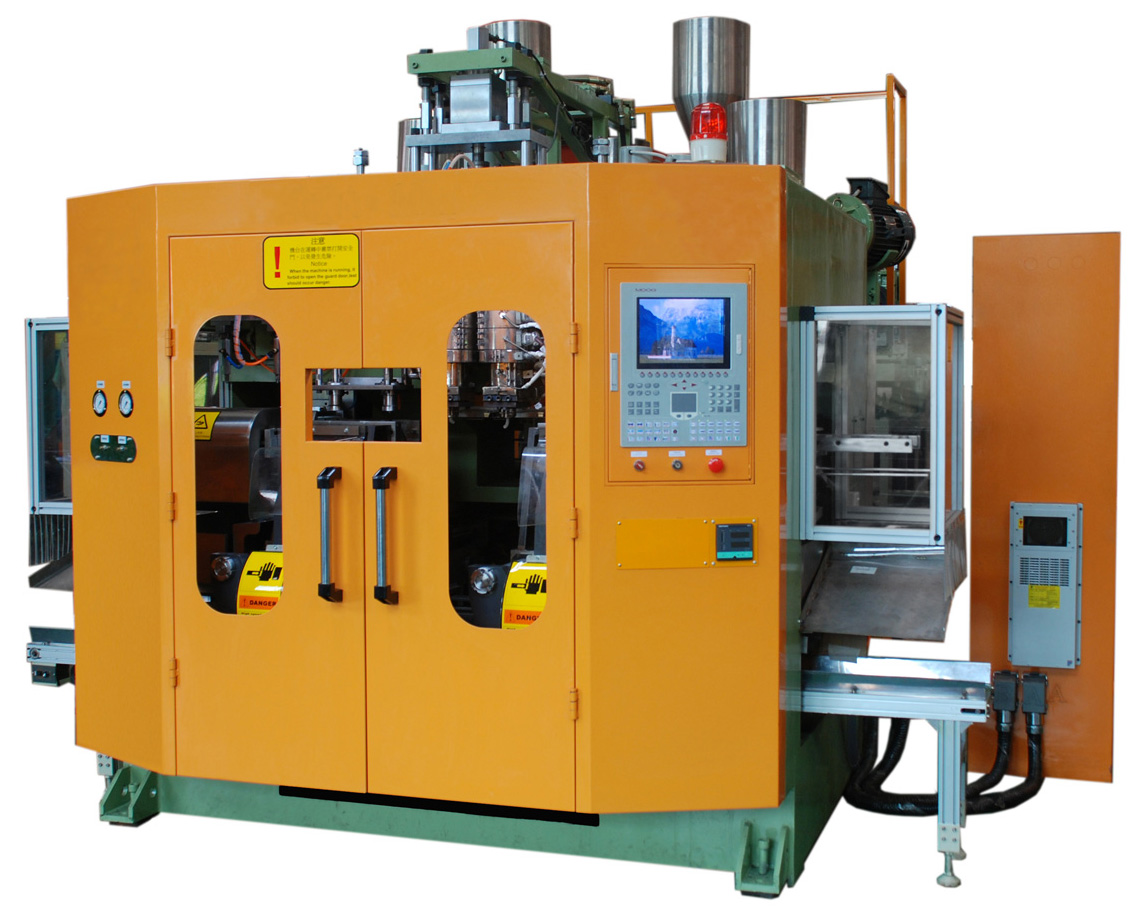

5 Multilayers Extrusion Blow Molding Machine EBM5 PBSS605D

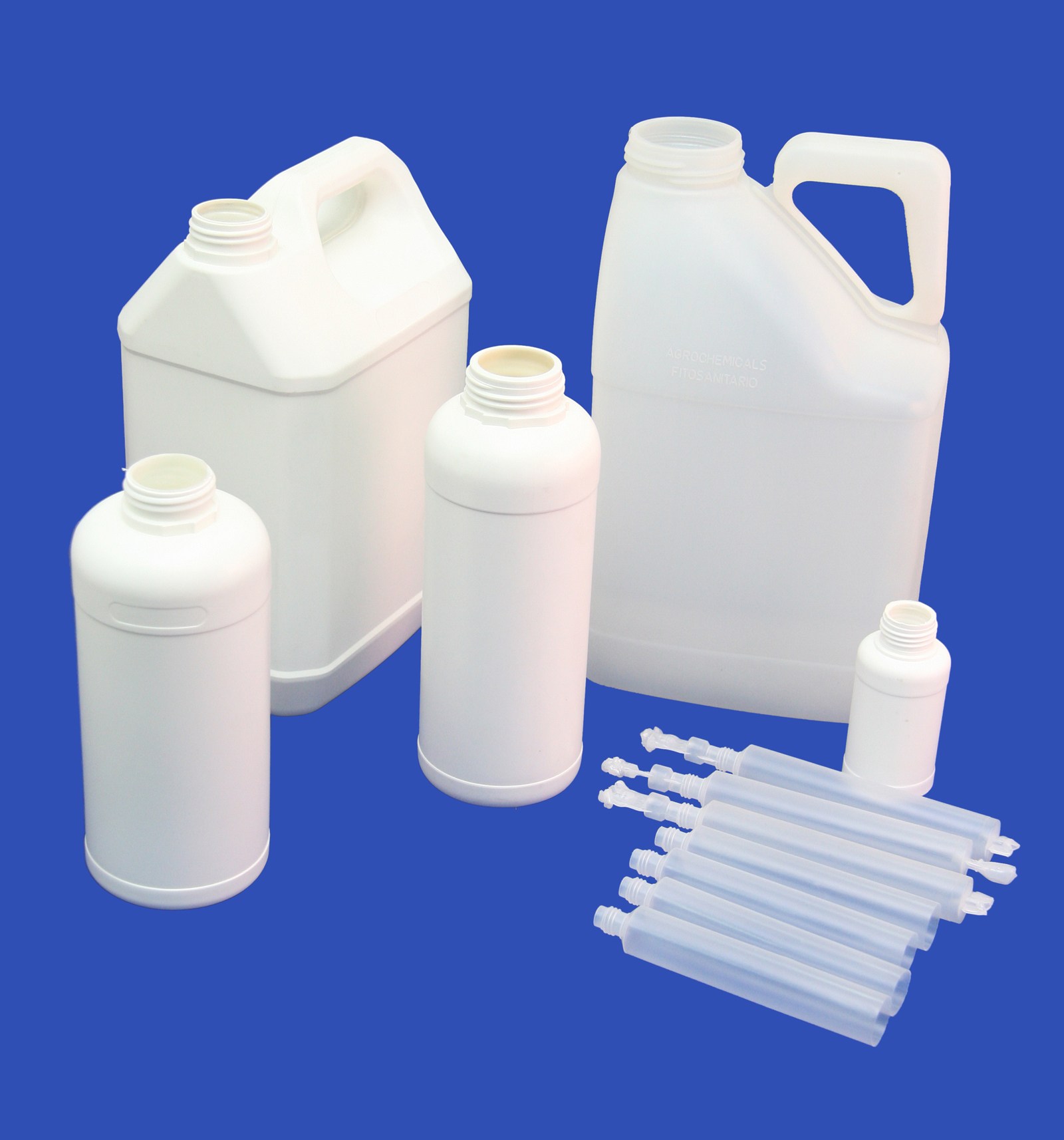

3 Layers Containers & 5 Layers Tubes

6 Layers Extrusion Blow Molding EBM Machine PBSS-605D-SL (Six Layers)

Goods	Qty	USD/SET	USD
Plastic Blow Molding Machine, Model PBSS-605D-SL, Double Stations and Double Dieheads, Six Layers Machine	1 Set	115,601	115,601
Mold Price (According to Customer's Bottle Design)	1 Set	Coming	Coming
Optional Equipments	Qty	USD/SET	USD
Moog 100 Points Parison Control	1 Set	18,695	18,695
Auto Deflashing Unit	2 Sets	3,440	6,880
Take-out Robot	2 Sets	3,739	7,478
Remarks: 1. Packing: by pallets 2. Delivery: within 90 days after Seller's receipt of prepayment. 3. Payment: 30% prepayment by T/T for order confirmation, plus 70% last payment before delivery. 4. Above machines have no CE or UL certificate. 5. The hydraulic oil, mold and installation charged are not included yet in above prices. 6. Installation charge: the to-and-fro air flight tickets, accommodations, all local transport and US$180/day as salary for one Seller's technician should be on Buyer's account. 7. The machine has one year of warranty after delivery under properly operations according to manual. Damage of faulty due to incoorect operation & normal wearing parts are excluded. 8. The machine's color is subject to factory's catalogue if there is no special request. 9. Offer validity: to be confirmed by Seller before Seller's acceptance Buyer's order. 10. The prices are on FOB Guangzhou port, China basis if extra USD500 is added as China customs clearance charges.

The specifications & specializing of PBSS-605S-SL (Six Layers):

Extruder

Screw Diameter: 45*45*35*40*35*45mm – SACM645, Ion Nitride Heat Treatment with Chrome Plating
Screw L/D Ratio: 26/1*26/1*22/1*28/1*22/1*26/1; Speed (Max): 15 ~ 65R.P.M.
AC Motor: TECO / Inverter: 7.5*7.5*5*7.5*5*7.5HP/SANKEN
extruding capacity: 60kg/hr (Max.)
Upper Base Movable Stroke: (Up/Down: 120mm); (Forward/Backward: 10mm) – Controlled by hydraulic motor to calibrate the mold much easier; (Right/Left: 30mm)
Magnetic Separator for Hopper to prevent metal from entering into screw.
4 Cooling Fans (1/8HP) installing onto main Barrel for temperature radiating.

Die Head Unit

Die Head type: DOUBLE / CONTINUOUS / With "TORPEDO" Pin
W/Barrel Filter in flange (between barrel & die head).

Clamping Unit – "Toggle (Crank)" Type

Max mold height: 290mm
Clamping Force: 6.2tons
Max clamp opening: 80-420mm

Hydraulic Unit

Pump Drive Motor: 15HP
Main Valve Device: TOKIMEC; DC 24V
Oil seal: Similar grade to "NOK"
Hydraulic oil temperature & capacity Detecting function

Pneumatic Unit

Main Device: FESTO
"Downward" direction type
1 set of Combination Unit for <1> Pressure Adjustment, <2> Filter, <3> Lubricant; and 1 set of Pressure Valve for blowing.

B&R Electricity systemOR MOOG OR BECKHOFF (Man Machine Interface)

Operation Panel: Separated from the Electric box, for all the parameters setting.
- 10” colorful TFT LCD display
- Manual buttons (Emergency button included)
- Function Keys & Numerals Keys included.
- Screen showing pages including Function Selection, ALARM, Machine Status & I/O Monitoring, Memory (Save/Load), Parison control connecting and ... for Pressure, Flow (Speed), Position, Timer, Counter and Temperature parameters value setting & monitoring.
Electric Box
- RS232 Transmission

Parison Controller

100 Points
Servo hydraulic cylinder (5HP) with LVDT linear Position Design (Potentiometer Transducers).
Hydraulic cylinder moving stroke: 10mm

Weight & Dimensions of Machine

Machine N.W.: 6800kgs
Machine Dimensions (L*W*H): about 3.2*2.1*2.4M

Machine's Color – Subject to factory's catalogue if there is no special request

Standard OR
To customize according to the customer's request.

Above specification for PBSS-605S-SL - Six Layers Machine

GO TO TOP

4 Layers Extrusion Blow Molding EBM Machine PBSS-605D-FL (Four Layers)

Goods	Qty	USD/SET	USD
Plastic Blow Molding Machine, Model PBSS-605D-FL, Double Stations and Double Dieheads, Four Layers Machine	1 Set	93,431	93,431
Mold Price (According to Customer's Bottle Design)	1 Set	Coming	Coming
Optional Equipments	Qty	USD/SET	USD
Moog 100 Points Parison Control	1 Set	18,695	18,695
Auto Deflashing Unit	2 Sets	3,440	6,880
Take-out Robot	2 Sets	3,739	7,478
Auto Cutting Device	2 Sets	3,739	7,478
Remarks: 1. Packing: by pallets 2. Delivery: within 90 days after Seller's receipt of prepayment. 3. Payment: 30% prepayment by T/T for order confirmation, plus 70% last payment before delivery. 4. Above machines have no CE or UL certificate. 5. The hydraulic oil, mold and installation charged are not included yet in above prices. 6. Installation charge: the to-and-fro air flight tickets, accommodations, all local transport and US$180/day as salary for one Seller's technician should be on Buyer's account. 7. The machine has one year of warranty after delivery under properly operations according to manual. Damage of faulty due to incoorect operation & normal wearing parts are excluded. 8. The machine's color is subject to factory's catalogue if there is no special request. 9. Offer validity: to be confirmed by Seller before Seller's acceptance Buyer's order. 10. The prices are on FOB Guangzhou port, China basis if extra USD500 is added as China customs clearance charges.

The specifications & specializing of PBSS-605S-FL (Four Layers):

Extruder

Screw Diameter: 45*45*35*40mm – SACM645, Ion Nitride Heat Treatment with Chrome Plating
Screw L/D Ratio: 26/1*26/1*22/1*28/1; Speed (Max): 15 ~ 65R.P.M.
AC Motor: TECO / Inverter: 7.5*7.5*5*7.5*5*7.5HP/SANKEN
extruding capacity: 60kg/hr (Max.)
Upper Base Movable Stroke: (Up/Down: 120mm); (Forward/Backward: 10mm) – Controlled by hydraulic motor to calibrate the mold much easier; (Right/Left: 30mm)
Magnetic Separator for Hopper to prevent metal from entering into screw.
4 Cooling Fans (1/8HP) installing onto main Barrel for temperature radiating.

Die Head Unit

Die Head type: DOUBLE / CONTINUOUS / With "TORPEDO" Pin
W/Barrel Filter in flange (between barrel & die head).

Clamping Unit – "Toggle (Crank)" Type

Max mold height: 290mm
Clamping Force: 6.2tons
Max clamp opening: 80-420mm

Hydraulic Unit

Pump Drive Motor: 15HP
Main Valve Device: TOKIMEC; DC 24V
Oil seal: Similar grade to "NOK"
Hydraulic oil temperature & capacity Detecting function

Pneumatic Unit

Main Device: FESTO
"Downward" direction type
1 set of Combination Unit for <1> Pressure Adjustment, <2> Filter, <3> Lubricant; and 1 set of Pressure Valve for blowing.

B&R Electricity System or MOOG or BECKHOFF (Man Machine Interface)

Operation Panel: Separated from the Electric box, for all the parameters setting.
- 10" colorful TFT LCD display
- Manual buttons (Emergency button included)
- Function Keys & Numerals Keys included.
- Screen showing pages including Function Selection, ALARM, Machine Status & I/O Monitoring, Memory (Save/Load), Parison control connecting and ... for Pressure, Flow (Speed), Position, Timer, Counter and Temperature parameters value setting & monitoring.
Electric Box
- RS232 Transmission

Parison Controller

100 Points
Servo hydraulic cylinder (5HP) with LVDT linear Position Design (Potentiometer Transducers).
Hydraulic cylinder moving stroke: 10mm

Weight & Dimensions of Machine

Machine N.W.: 6800kgs
Machine Dimensions (L*W*H): about 3.2*2.1*2.4M

Machine’s Color – Subject to factory's catalogue if there is no special request

Standard OR
To customize according to the customer's request.

Above specification for PBSS-605S-FL - Four Layers Machine

GO TO TOP
