No.

Name

Model

Features

Qty

FOB FOB Guangzhou, China

1

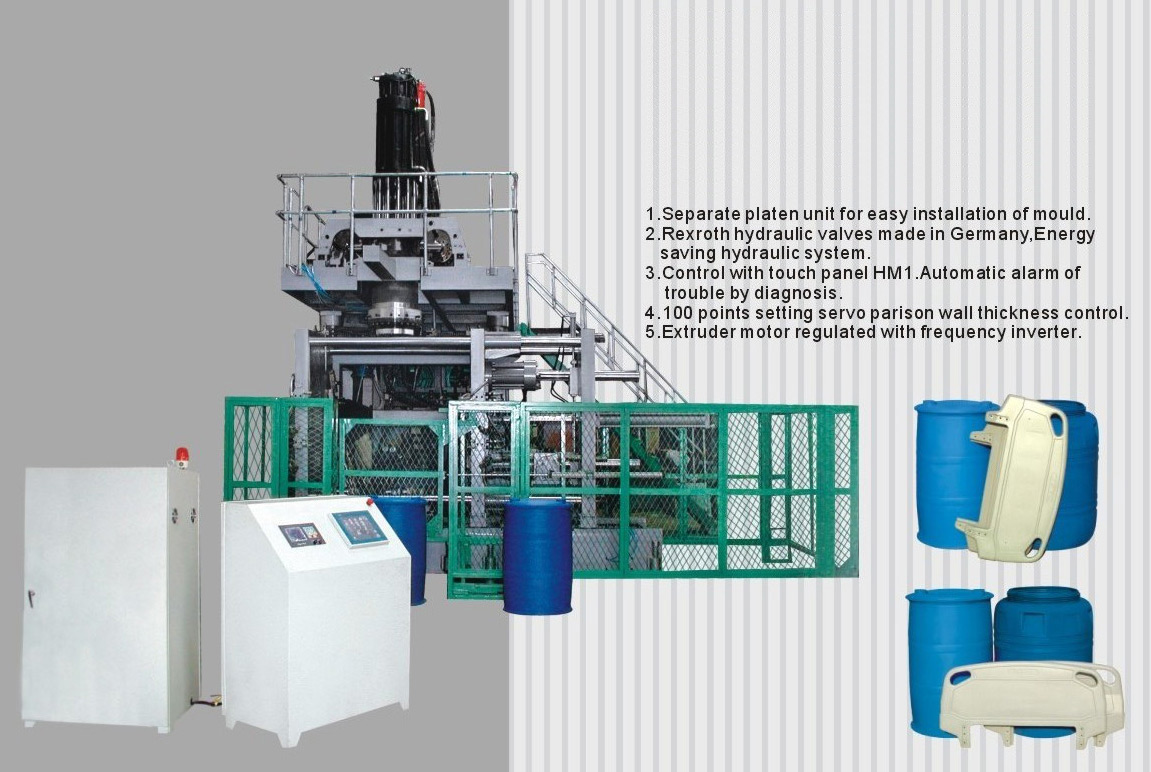

EBM Machine

SJY120S-1

Screw 120mm, single diehead, single station, with 24L materials storage bin, output around 360pcs/24hrs/day, with Japan MOOG 100 points wall thickness parison controller

1 Set

USD198,218

2

EMB Mold

230L, Twin L Rings

Alloy Aluminum

1 Set

USD39,963

***Prices are on USD100=RMB683 basis, if the exchange rate fluctuates more than 1%, the prices should be adjusted in last payment according to http://www.boc.cn/sourcedb/whpj/enindex.html
***Payment by 30% T/T prepayment plus 70% T/T payment before delivery.
***Packaged in plastics films, fixed onto container.
***Lead time: 150 days after Seller's receipt of prepayment, not including mold testing and samples mailing time.
***Offer valids till March 31st, 2009

Main Technical Parameters

Model

SJY120S-1

1

Screw Diameter, mm

120

2

L/D

30:1

3

Plasticizing Capacity, Kgs/hr

240

4

Storage Capacity, Litre

24

5

Minimum Mold Closing Distance, mm

750

6

Maximum Mold Closing Distance, mm

1700

7

Maximum Mold, W/H, mm

1000*1400

8

Maximum Blowing Capacity, L

230

9

Empty Cycle Time

20

10

Clamping Force, KN

800

11

Working Air Pressure, Bar

4-8

12

Machine Gross Weight, Kgs

35000

Key Components List

Components

Brand & Intro

Control
System

Control Computer

Japan Mitsubishi, colorful touch screen, professional computer temperature control module.
Full computer type means flow, pressure, temperature, speed, automatic output counting,
automatic reset, automatic failure display all directly controlled by a computer.

Frequency Inverter

Taiwan Delta

Contactor

Japan Fuji

Wall Thickness Parison Control

Japan MOOG 100 points controller, most convenient operations, most accurate controls,
most stable running on wall thickness control. Parison wall thickness control is very
important on improving the quality of bottles & containers, reducing the cost of raw materials.

Hydraulic
System

Hydraulic Directional Valve

Taiwan Yuken, high speed & high efficiency energy saving hydraulic system
whose reliability is much improved and service life is greatly prolonged.

Hydraulic Pump

Taiwan Hytek, low noise high performance

Proportional Valve

Taiwan Yuken, high performance

Wall Thickness Servo Valve

Japan MOOG, high performance & response precise

Extrusion
System

Screw/Barrel

Top grade 38CrMoALA nitrided steel, nitride layer 0.4-0.5mm,
hardness HV900 high hardness good wearproof.

Screw

High efficiency mixing plasticizing screw

Extrusion Motor

Low noise, high torque, long service life.

Reduction Gearbox

20CrMnTi high strength, alloy steel hard gear surface,
with carburization quench gear-grinding machining

Diehead System

Diehead

Alloy steel electroplated diehead, scientific & advanced runner design.

Remarks: The above components list is for customers' reference, final components list is according to contract.

Electricity Consumption Parameters

1

Extrusion Power, KW

75

2

Screw Barrel Heating Power, KW

48

3

Oil Pump's Motor Power, KW

30+11

4

Diehead Heating Power, KW

38

5

Maximum Total Power, KW

202
