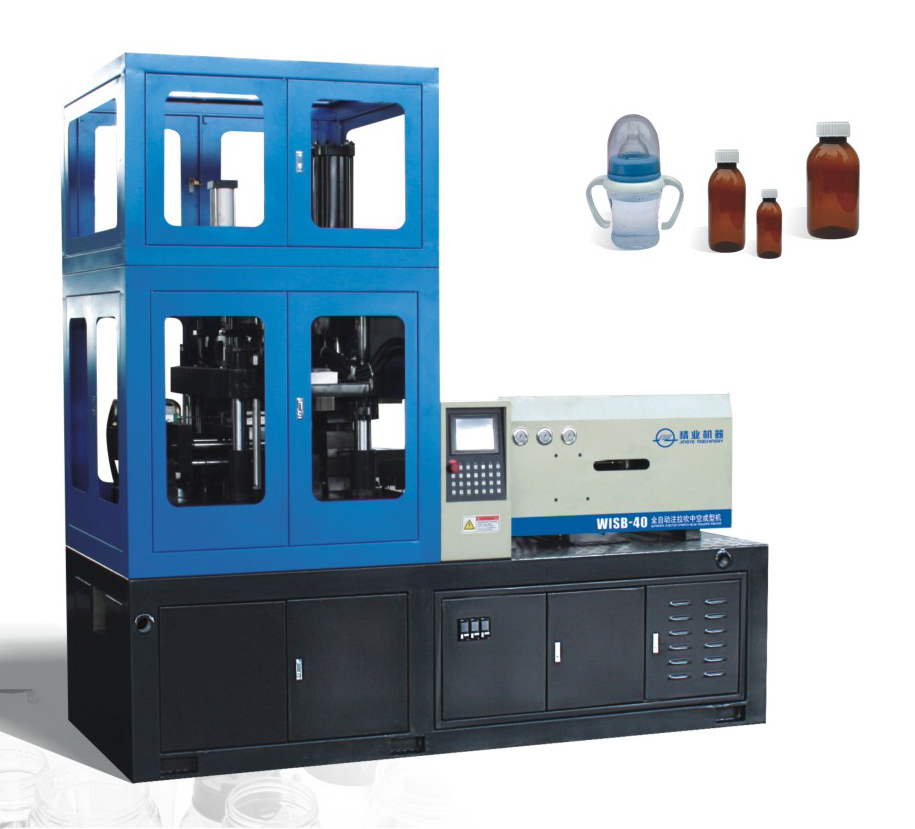

PET Injection Stretch Blow Molding ISBM Machine WISB28, WISB38, WISB40

Automatic one step injection stretch blow molding technology to make PET bottles, which could save costs on workers and reduce labor intensity.
Two symmetrically distributed stations to realize the synchronous working of preforms injection and bottles stretch blowing.
Two stations design simplifies working steps, and saves cost on ISBM molds.
To adopt variable pump which obviously saves energy.
To adopt servo positioning organ for stablely working and precisely locating.

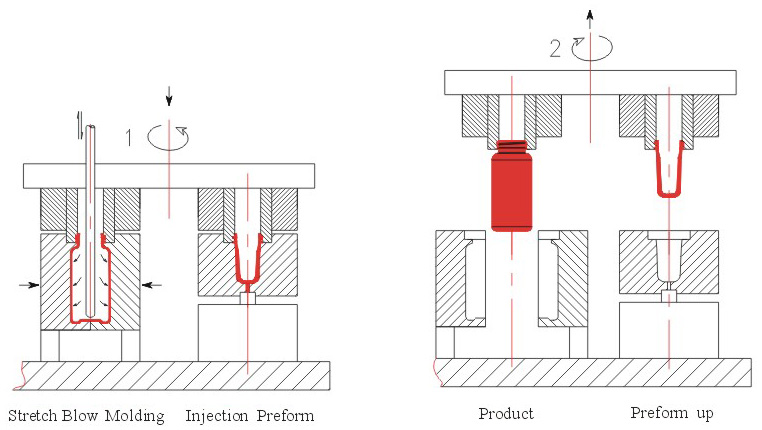

Technical Diagram of
2 Stations PET Injection Stretch Blow Molding (ISBM) Technology

This manufacturer has mature experiences and technology in manufacturing transparent plastics containers with PC, PETG raw materials. Now it has begun R&D and production in automatic single step injection stretch blow molding (ISBM) machines and (ISBM) molds.
Reasons for choosing single step injection stretch blow molding (ISBM) machine:
No need for manual secondary processing, the produced bottles meet with GMP requirements of cosmetic, food and pharmaceutical industries on clean containers.
Suitable for producing special containers like without retaining support ring in container's mouth.
Excellent quality on containers/bottles' appearances like limpidity & immaculacy, which meet with high requirements of cosmetic, food and pharmaceutical industries.
Suitable for small amount and many kinds production in packaging industry.

Technical Parameters of Automatic PET Injection Stretch Blow Molding ISBM Machine WISB28
No	Item	Unit	WISB-28	No	Item	Unit	WISB-28	Mould Cavities	Neck Diameter(d)	Body Diameter(D)	Height(H)	Injection Capacity
1	Screw Diameter	mm	28	7	Working Air Pressure	MPa	0.7~0.9	2	34	65	150	80g
2	Theoretical Injection Capacity	g	118	8	Blowing Pressure	MPa	2~3	4	24	50	120	80g
3	Injection Clamping Force	KN	120	9	Cooling Water	bar	1~3	6	15	40	100	80g
4	Blow Clamping Force	KN	30	10	Machine Dimension	cm	300x128x285	-	-	-	-	-
5	Motor Power	kw	11	11	Machine Weight	Kgs	4,000	-	-	-	-	-
6	Heater Power	kw	5.8/4	12	Suitable Materials	-	PET	-	-	-	-	-
Optional Auxiliary Equipments List PET Dehumidification/Drying/Conveying Unit, Shini SCD-160U/80H, 1 Set Water Heater for Mold (Mold Temperature Controller, MTC), Shini STM-1220W, 2 Sets Water Chiller for Machine, Shini SIC-10W, 1 Set High Pressure Compressor, Model 09SH-1540T, 1 Set

Technical Parameters of Automatic PET Injection Stretch Blow Molding ISBM Machine WISB35
No	Item	Unit	WISB-35	No	Item	Unit	WISB-35	Mould Cavities	Neck Diameter(d)	Body Diameter(D)	Height(H)	Injection Capacity
1	Screw Diameter	mm	35	7	Working Air Pressure	MPa	0.7~0.9	1	60	90	160	90g
2	Theoretical Injection Capacity	g	184	8	Blowing Pressure	MPa	2~3	2	50	80	150	90g
3	Injection Clamping Force	KN	200	9	Cooling Water	bar	1~3	4	34	75	120	90g
4	Blow Clamping Force	KN	62	10	Machine Dimension	cm	300x128x285	6	24	50	100	90g
5	Motor Power	kw	20	11	Machine Weight	Kgs	4,800	8	15	40	100	90g
6	Heater Power	kw	6.4/4.7	12	Suitable Materials	-	PET	-	-	-	-	-
Optional Auxiliary Equipments List PET Dehumidification/Drying/Conveying Unit, Shini SCD-160U/80H, 1 Set Water Heater for Mold (Mold Temperature Controller, MTC), Shini STM-1220W, 2 Sets Water Chiller for Machine, Shini SIC-10W, 1 Set High Pressure Compressor, Model 09SH-1540T, 1 Set

Technical Parameters of Automatic PET Injection Stretch Blow Molding ISBM Machine WISB40
No	Item	Unit	WISB-40	No	Item	Unit	WISB-40	Mould Cavities	Neck Diameter(d)	Body Diameter(D)	Height(H)	Injection Capacity
1	Screw Diameter	mm	40	7	Working Air Pressure	MPa	0.7~0.9	1	75	90	160	104g
2	Theoretical Injection Capacity	g	150	8	Blowing Pressure	MPa	2~3	2	50	80	150	104g
3	Injection Clamping Force	KN	200	9	Cooling Water	bar	1~3	4	40	75	120	104g
4	Blow Clamping Force	KN	62	10	Machine Dimension	cm	320x140x300	-	-	-	-	-
5	Motor Power	kw	20	11	Machine Weight	Kgs	4,800	-	-	-	-	-
6	Heater Power	kw	6.4/4	12	Suitable Materials	-	PP	-	-	-	-	-

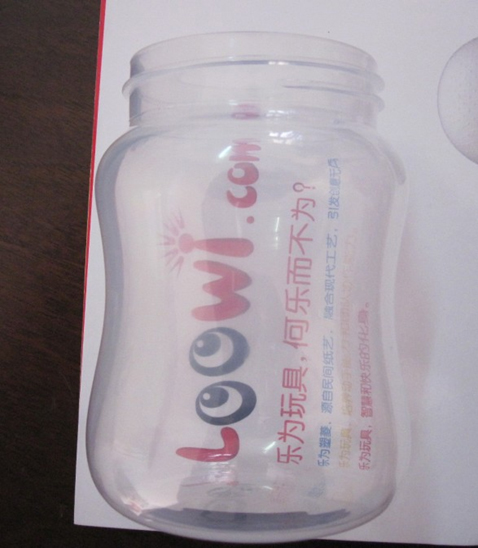

Optional Auxiliary Equipments List PET Dehumidification/Drying/Conveying Unit, Shini SCD-160U/80H, 1 Set Water Heater for Mold (Mold Temperature Controller, MTC), Shini STM-1220W, 2 Sets Water Chiller for Machine, Shini SIC-10W, 1 Set High Pressure Compressor, Model 09SH-1540T, 1 Set									Transparent PP Baby Bottles, Made by ISBM Machine, WISB40

No.	Item	Brand	Origin
1	Variable Pump	YUKEN	Japan
2	All Hydraulic Valve	YUKEN	Japan
3	Servo Motor System	Mitsubishi Motor + YUKEN Pump	Japan
4	Seal Ring	HALLITE	UK
5	Hydraulic Oil Motor	INTERMOT	UK
6	Air Combination, Rodless Cylinder	SMC	Japan
7	Cylinder Air Valve	SMC	Japan
8	Air Cylinder	AIRTAC	Taiwan
9	PLC & Computer Screen	OMRON	Japan
10	Rotation Plant Servo Motor	OMRON	Japan
11	Low-Voltage Electrical Components	Schneider	Germany
12	Temperature Controller	OMRON	Japan
13	Servo Motor	Mitsubishi	Japan
14	Material Used for Mould	Mould Mirror Steel	China
