Pimpex@RPM supplies high speed corrugated pipe production lines, plastic straws making lines, PE straws making lines, PP straws making lines, plus plastic extruders, small high speed straws moulds, vision pipe cutting machines.
Video of Making Straws from High Speed Corrugated Pipe Production Line
 High Speed Corrugated Pipe Production Line GS-14-2 1 Plastic Extruder SJ-45 Including Automatic Feeding and Drying |
 High Speed Corrugated Pipe Production Line GS-14-2 2 Plastic Straws Making Machine GS-14-2 |
 High Speed Corrugated Pipe Production Line GS-14-2 3 Small High Speed Mould (No Vacuum) |
 High Speed Corrugated Pipe Production Line GS-14-2 4 Water Chiller 5hp |
 High Speed Corrugated Pipe Production Line GS-14-2 5 Vision Pipe Cutting Machine Power 1.3kW |
|
| High Speed Corrugated Pipe Production Line GS-14-2 1 Plastic Extruder SJ-45 Including Automatic Feeding and Drying |
Plastic Extruder: Model: SJ-45 (including automatic feeding and drying) Screw length to diameter ratio: 28:1 Screw material: 38CrmoALA Motor: 7.5kW (Siemens BEIDE) Gear box: 133 hard tooth surface, air-cooled Cast aluminum heater: 3 groups Temperature control meter: 4 groups (OMRON) Inverter: 7.5kW (ABB) Contactor: 6 (Schneider) Production capacity: 20-35kgs/h, 10-15m/min Plywood crate sizes: 210*88*135cm N.W. 500kgs, G.W. 522kgs EXW Factory, China: USD*,***/SET Electric Cabnet, N.W. 69kgs G.W. 75kgs Plywood crate sizes: 84*60*110cm |

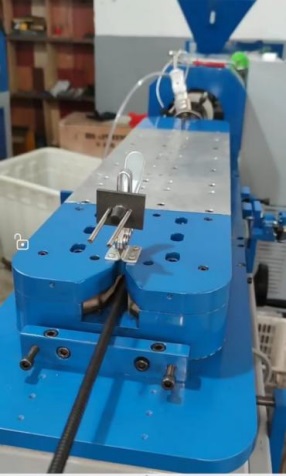

| High Speed Corrugated Pipe Production Line GS-14-2 2 Plastic Straws Making Machine GS-14-2 |
Plastic Straws Making Machine Model: GS-14-2 Forming speed: 15-25m/min Motor power: 0.75kW variable frequency motor Electronic components: Siemens BEIDE Frequency converter: ABB Vacuum pump: 2.2kW, 63 cubic meters Rail material: 38CrMoAla Control method: DELTA PLC touch screen control Dimensions: 1500*700*1200mm Cooling method: water cooling Mold's Circumference: 70pairs/set×28.26mm, standard 2m Plywood crate sizes: 125*54*117cm N.W. 400kgs machine + 20kgs mould, G.W. 462kgs EXW Factory, China: USD**,***/SET |

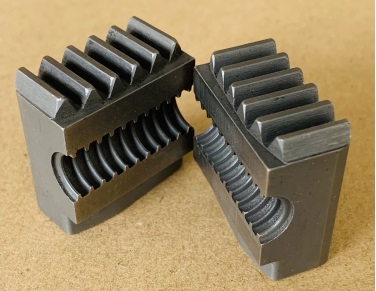

| High Speed Corrugated Pipe Production Line GS-14-2 3 Small High Speed Mould (No Vacuum) |
Small High-Speed Mould (No Vacuum) Material: 40Cr Mold's Circumference: 70+6pairs/set×28.26mm, standard 2m Cooling method: water cooling Hardness: Nitriding treatment Dimensions: 28*14*30mm/pair N.W. 10kgs EXW Factory, China: USD*,***/SET Extra Cost USD*** for 82+(4) Pairs Mould if Instead of 70+(6) Pairs Mould Extra Cost USD*,*** for 1 Pair of Track Block for Adjusting Length |
| High Speed Corrugated Pipe Production Line GS-14-2 4 Water Chiller 5hp |
Water Chiller Model: 5HP Cooling capacity: 15kW (12,900kcal/hr) Compressor power: 5hp Pump power: 0.375kw Built-in water tank capacity: 64L Dimensions: 1000*500*880mm Plywood crate sizes: 141*74*117cm N.W. 200kgs, G.W. 219kgs EXW Factory, China: USD*,***/SET |
| High Speed Corrugated Pipe Production Line GS-14-2 5 Vision Pipe Cutting Machine Power 1.3kW |
Vision Pipe Cutting Machine Power: 1.3kW Positioning method: camera positioning Positioning accuracy: ±0.5mm Cutting speed: 0-12m/min, adjustable, max. 40pcs/min, different speed according to different material, thickness, length Cutting diameter: 5-40mm Air pressure: 0.5MPa Number of cutting segments: up to ten different lengths can be cut, and the joints must be the same (pictures are for reference only) Plywood crate sizes: 98*76*152cm N.W. 178kgs, G.W. 193kgs EXW Factory, China: USD**,***/SET |
| Video of Folding 6 PE Straws with Length 9", 11", 13", 15.5", 17" or 19" |
Plywood Crates' Cost: EXW Factory, China: USD***/LINE China LCL Logistics Charges: USD*** TOTAL FCA CHINA: USD**,***/LINE Remarks: The prices are on USD100=RMB689 basis, if the exchange rate fluctuates more than 1%, the prices should be adjusted in last payment according to "Bank's Buying Rate" in http://www.boc.cn/sourcedb/whpj/enindex.html Payment: 50% T/T prepayment plus 50% T/T payment before delivery. |
